ASTM Schedule 40 Sch 80 Pipe Seamless Steel Pipe

Schedule 40 (SCH40): This is a standard wall thickness pipe, with a relatively thinner wall. For example, a 2-inch (approximately 50.8 mm) SCH40 seamless steel pipe has a wall thickness of about 3.91 mm, suitable for low-pressure environments not exceeding 0.6 MPa, such as hot and cold water pipes in ordinary residences.

Schedule 80 (SCH80): This is a thicker pipe, with a significantly increased wall thickness. A 2-inch SCH80 seamless steel pipe can have a wall thickness of up to 5.49 mm, capable of withstanding pressures above 1.0 MPa, and is commonly used in high-pressure hot water systems, industrial fluid transportation, and other applications requiring higher pressures.

Out Diameter	13.7mm-914mm
Wall Thickness	2mm-120mm
Length	2m-12m
Producing Standard	American ASME B36.10M, ASTM API 5L, API 5CTJapanese JIS, German DIN, Chinese GB, BS standard
Steel Grade	ASTM A53, A106, A500, A513, A179, A178, A192, SAE1018, SAE1020, SAE1045 etc; API 5L PSL1: A, B, x42, x46, x52, x56, x60, x65, x70 ; PSL2: B, x42, x46, x52, x56, x60, x65, x70,x80 EN S235JRH，S275JOH，S355J2H JIS SS400, STPG42, G3454, G3456 etc; DIN St35, St35.8, St37, St42, St45, St52, DIN1626,DIN17175 etc; GB 10#, 20#, 45#, Q235, Q345, Q195, 16Mn, 27SiMn, 20Cr, 40Cr, 12CrMo, 15CrMo, 30CrMo, 35CrMo, 42CrMo etc;
Special specifications	Available according to customer's requirements and quantity.
End Shape	Beveled end, plain end, varnished, or adding plastic caps to protect the two ends as per customer's requirements
Surface treatment	Painted, Oiled, galvanized, phosphate etc
Usage	Widely used in the mechanical treatment field, petrochemical industry, transport and construction field2.Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;3.The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc4.Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
Third party inspection	Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.

ASTM A53 Chemical Composition Requirements

ASTM A53	C	Mn	P	S	Cu	Ni	Cr	Mo	V	CE (Max)
Type S (Seamless)
Grade A	0.25	0.95	0.05	0.045	0.40	0.40	0.40	0.15	0.08	—
Grade B	0.30	1.20	0.05	0.045	0.40	0.40	0.40	0.15	0.08	—
Type E (Electric-Resistance Welded)
Grade A	0.25	0.95	0.05	0.045	0.40	0.40	0.40	0.15	0.08	—
Grade B	0.30	1.20	0.05	0.045	0.40	0.40	0.40	0.15	0.08	0.50
Type F (Furnace-Butt Welded)†
Grade A	0.30	1.20	0.05	0.045	0.40	0.40	0.40	0.15	0.08	—

ASTM A106 Chemical Composition Requirements

ASTM A106	C	Mn	P	S	Si	Cu	Ni	Cr	Mo	V	CE (Max)
Grade A	0.25	0.27-0.93	0.035	0.035	0.10	0.40	0.40	0.40	0.15	0.08	0.50
Grade B	0.30	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.40	0.15	0.08	0.50
Grade C	0.35	0.29-1.06	0.035	0.035	0.10	0.40	0.40	0.40	0.15	0.08	0.55

Product Dimensions

NPS	(OD)	Schedule 40（thickness ）	Schedule 80（thickness ）
	in (mm)	in (mm)	thickness in (mm)
1/8	0.405 (10.29)	0.068 (1.73)	0.095 (2.41)
1/4	0.540 (13.72)	0.088 (2.24)	0.119 (3.02)
3/8	0.675 (17.15)	0.091 (2.31)	0.126 (3.20)
1/2	0.840 (21.34)	0.109 (2.77)	0.147 (3.73)
3/4	1.050 (26.67)	0.113 (2.87)	0.154 (3.91)
1	1.315 (33.40)	0.133 (3.38)	0.179 (4.55)
1 1/4	1.660 (42.16)	0.140 (3.56)	0.191 (4.85)
1 1/2	1.900 (48.26)	0.145 (3.68)	0.200 (5.08)
2	2.375 (60.33)	0.154 (3.91)	0.218 (5.54)
2 1/2	2.875 (73.03)	0.203 (5.16)	0.276 (7.01)
3	3.500 (88.90)	0.216 (5.49)	0.300 (7.62)
3 1/2	4.000 (101.60)	0.226 (5.74)	0.318 (8.08)
4	4.500 (114.30)	0.237 (6.02)	0.337 (8.56)
5	5.563 (141.30)	0.258 (6.55)	0.375 (9.53)
6	6.625 (168.28)	0.280 (7.11)	0.432 (10.97)
8	8.625 (219.08)	0.322 (8.18)	0.500 (12.70)
10	10.750 (273.05)	0.365 (9.27)	0.500 (12.70)*
12	12.750 (323.85)	0.375 (9.53)	0.500 (12.70)*
14	14.000 (355.60)	0.375 (9.53)	0.500 (12.70)*
16	16.000 (406.40)	0.375 (9.53)	0.500 (12.70)*
18	18.000 (457.20)	0.375 (9.53)	0.500 (12.70)*
20	20.000 (508.00)	0.375 (9.53)	0.500 (12.70)*
24	24.000 (609.60)	0.375 (9.53)	0.500 (12.70)*

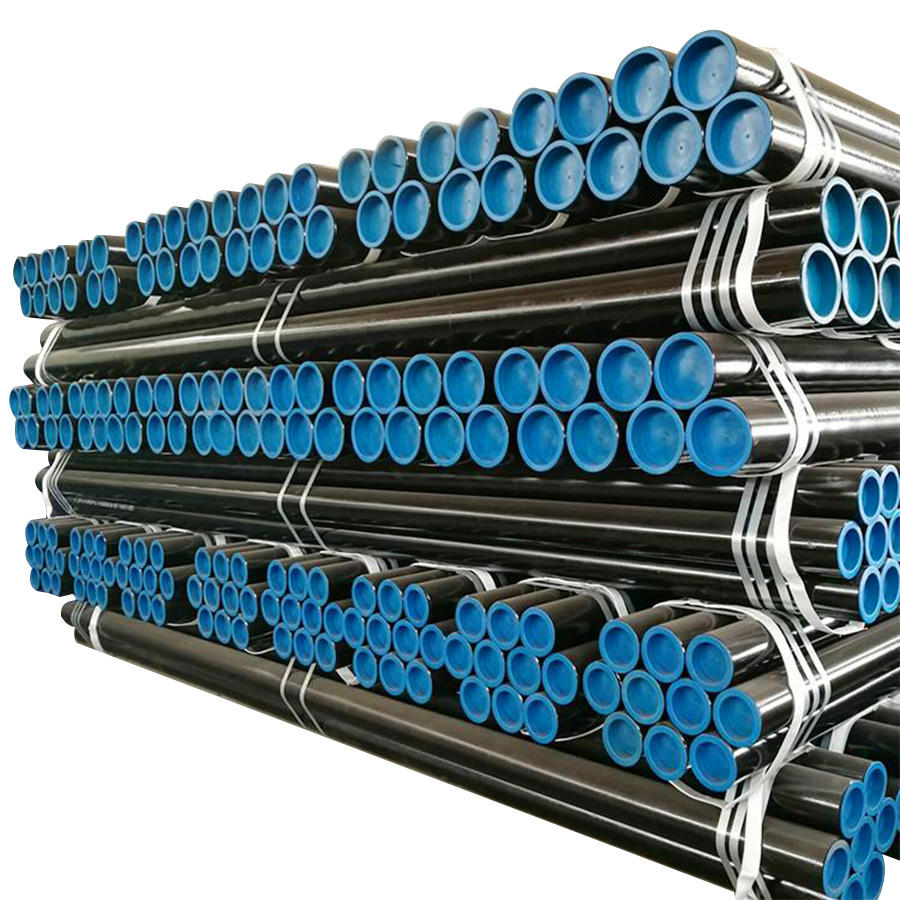

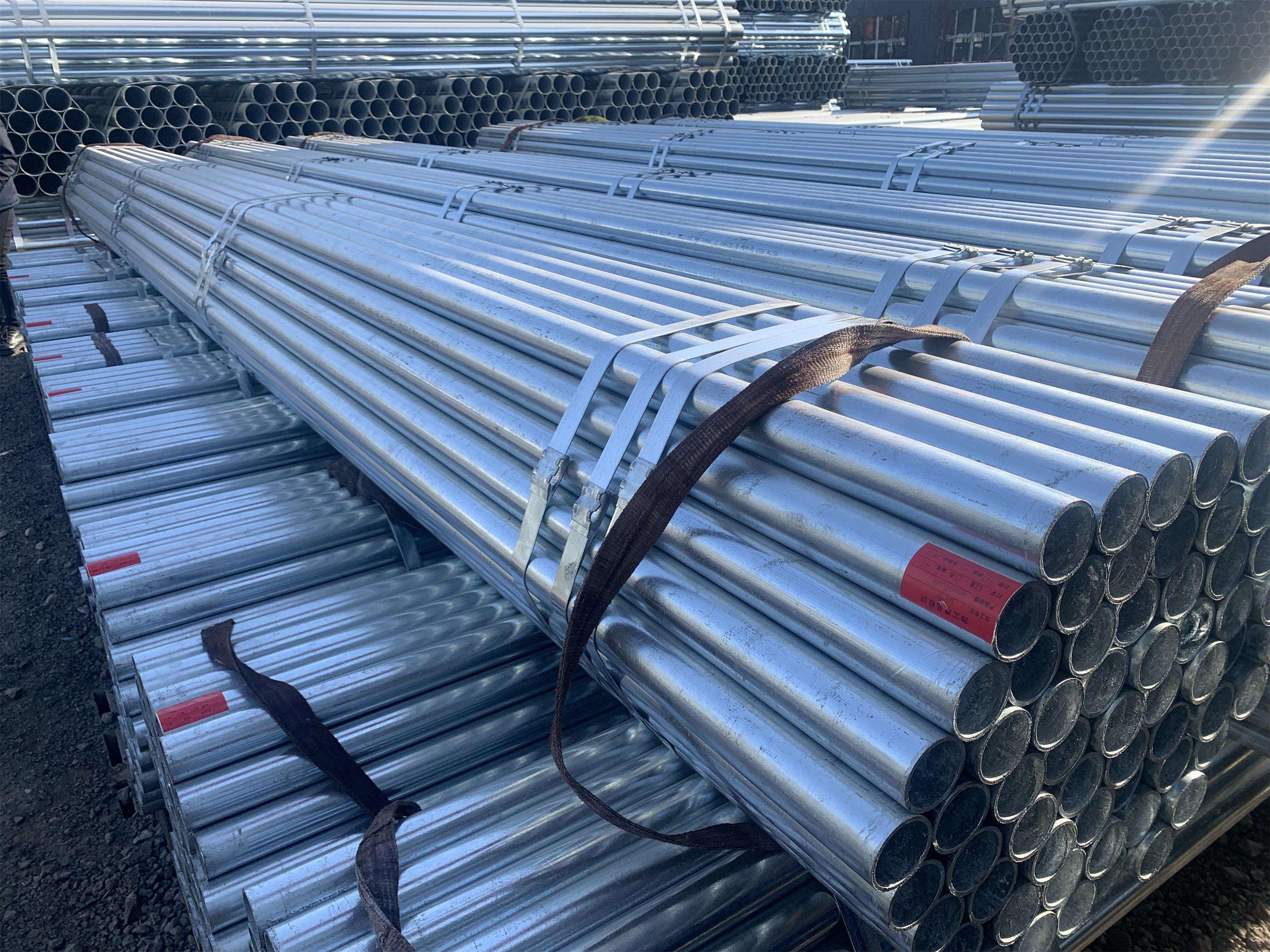

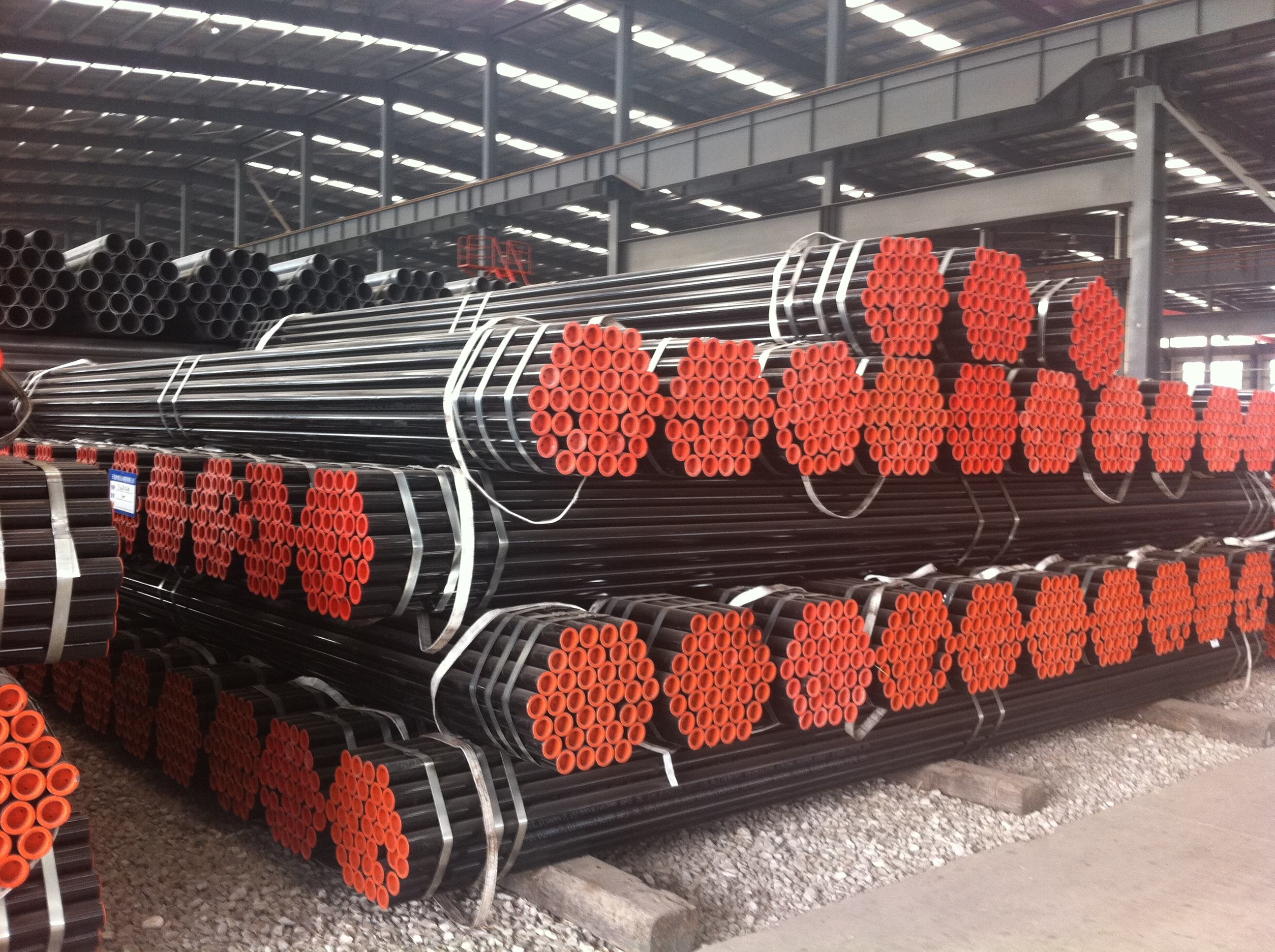

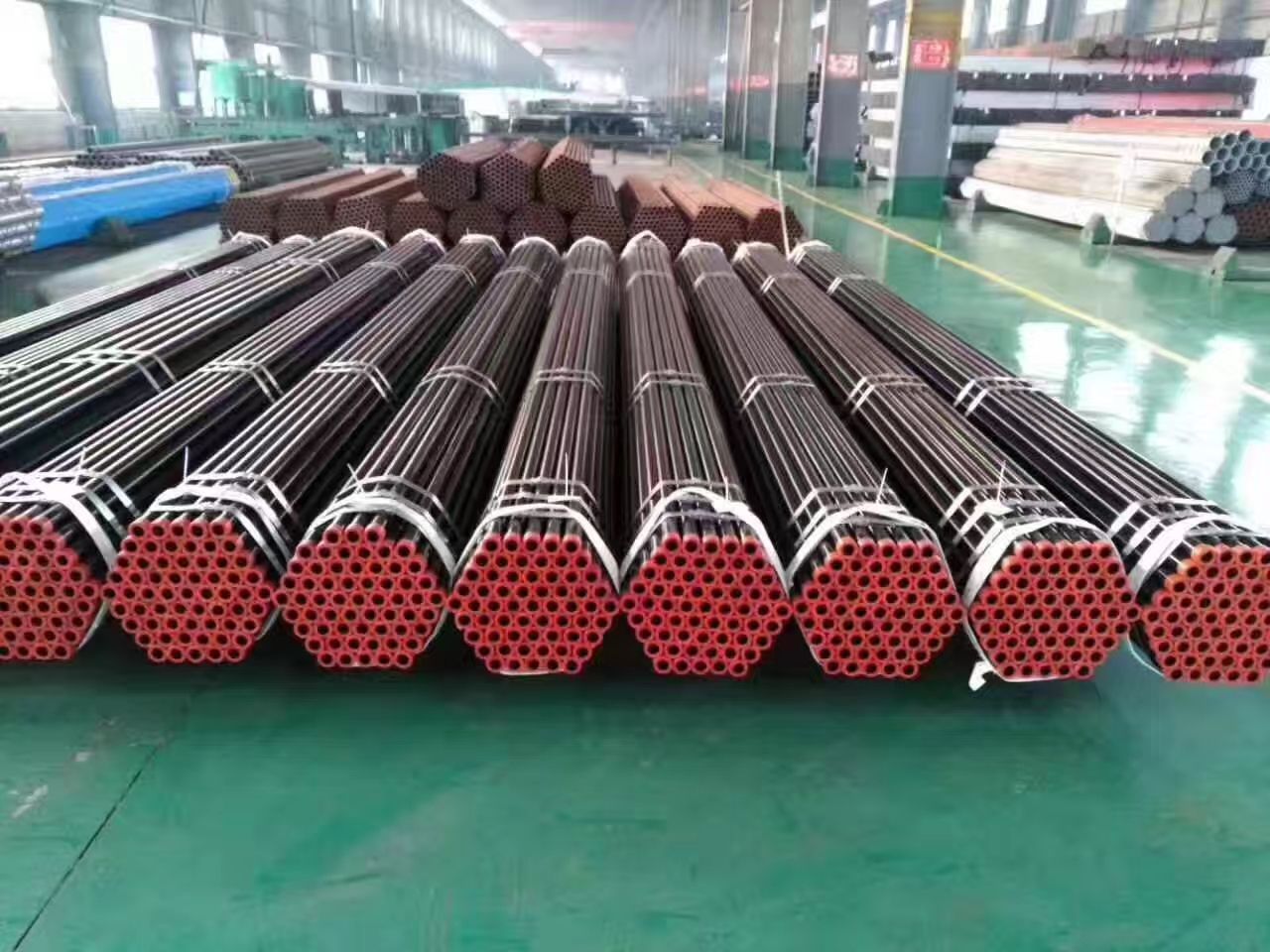

product display

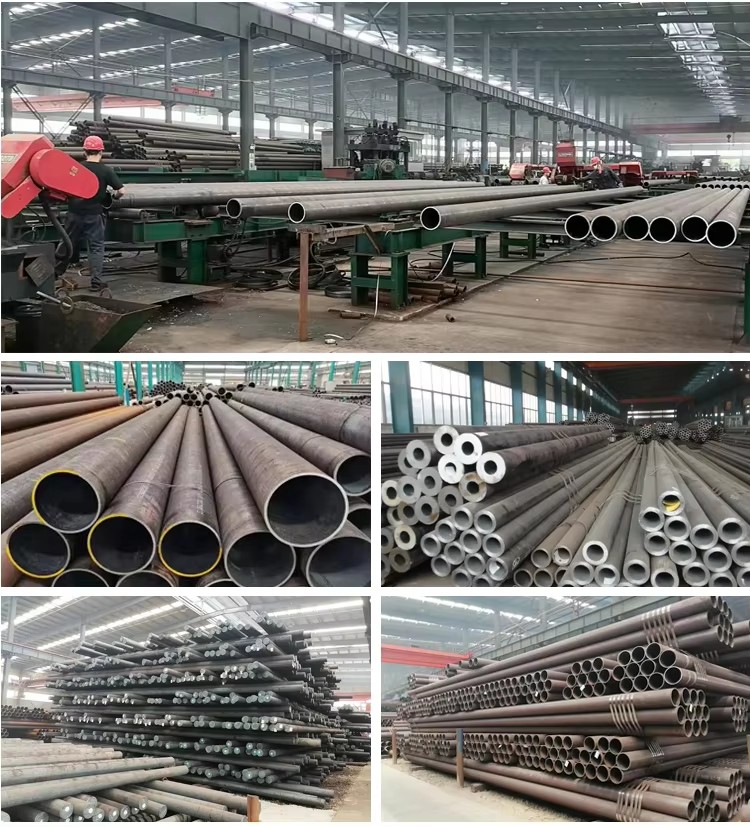

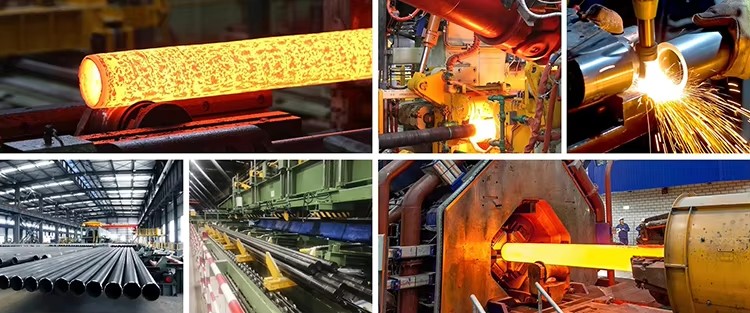

Processing and display

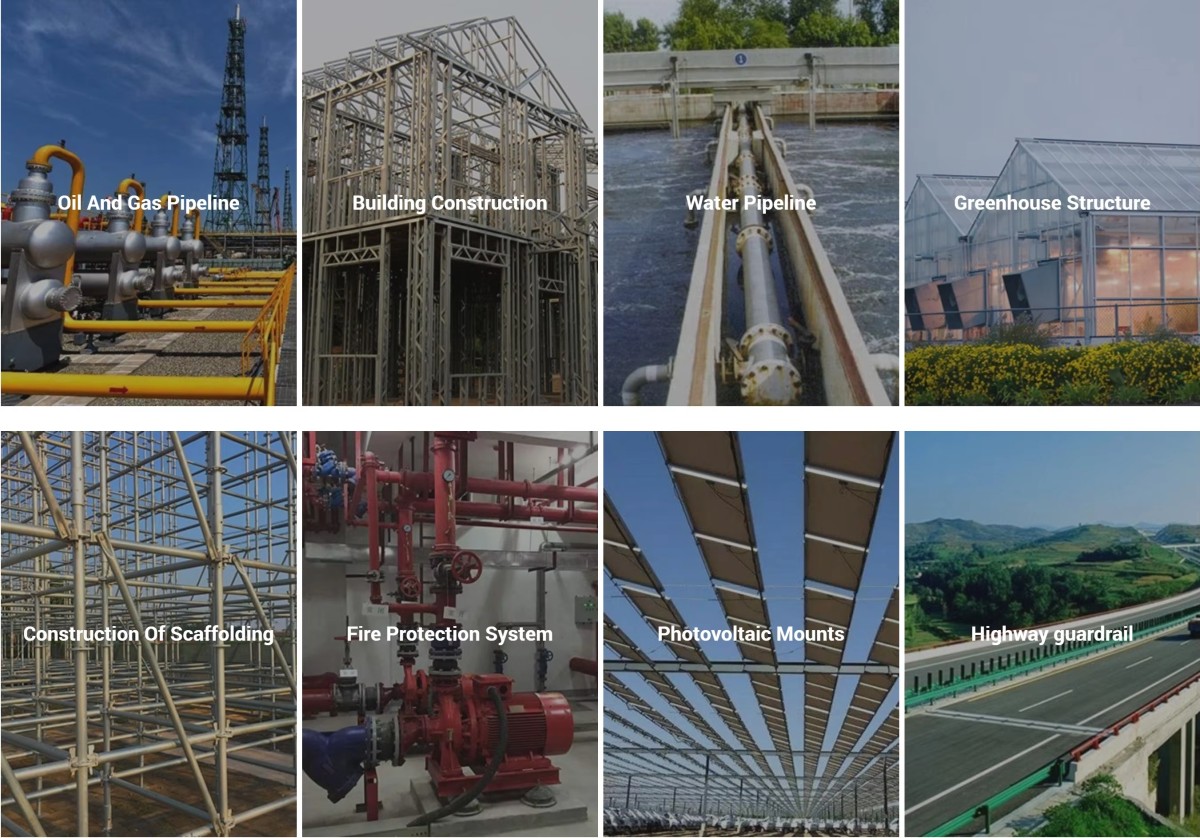

Product Applications

Packaging and shipping
