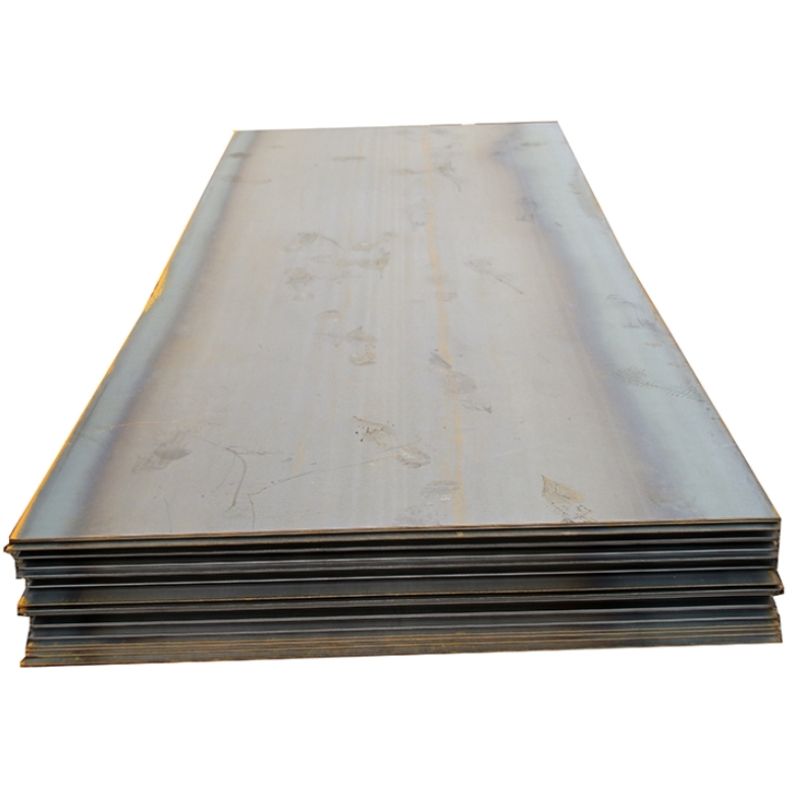

ASTM A36 Carbon Steel Plate

ASTM A36 is the American standard carbon structural steel plate, and the implementation standard is ASTM A36/A36M (the latest version is ASTM A36/A36M-17). It belongs to the American standard carbon steel plate. The corresponding material in China is Q235B. ‌
Chemical composition ‌Carbon
(C)‌: ≤0.25% ‌Silicon
(Si)‌: ≤0.40% ‌Manganese
(Mn)‌: 0.80%-1.20% ‌Phosphorus
(P)‌: ≤0.04% ‌Sulfur
(S)‌: ≤0.05% ‌Copper
(Cu)‌: ≥0.20% when copper content is required ‌

Standard	ASTM、JIS、EN、DIN、GB、AISI
Grade	ASTM	A36、A516、A572、 A283、A285、A514、A615、A203、A213、D2、M2、H13、etc
	EN	S235JR、S355JR、S275J2、S460ML、S420ML、1.2080、1.2714、etc
	JIS	SS400、SS490、SS400、SM490、SPCC/D/E、S45C、SK5、SKD11、etc
	GB	Q195、Q235、Q345、Q420、Q690、16Mn、42CrMo、Cr12MoV、etc
	DIN	St37、St44、St52、St70、C45、S235JR、S355J2W、16MnCr5、etc
Specifications	Thickness	0.1mm-4.0mm，Customized according to requirements
	Width	600mm-2000mm，Customized according to requirements
	Length	1200mm-6000mm，Customized according to requirements
Processing	Annealing、Stamping、Punching、Shearing、Splicing、Surface Treatment
Surface	Cold rolled bright finish、Pickled finish、Oil-treated、Galvanized finish、Pre-coated
Package	Standard solution: plastic film + kraft paper + strapping + wooden pallet
	Advanced solution: plastic film + kraft paper + galvanized sheet + strapping + wooden box
	Economic solution: plastic film + strapping + wooden pallet
	Or customize packaging solutions according to needs

General-purpose structural carbon steel plates

Widely used in construction, bridges, and general structural manufacturing.

ASTM Standard & Grade	C	Mn	P	S	Si	Cu (Min)
A36 / A36M	0.26	0.80-1.20	0.04	0.05	0.15-0.40	0.20
A572 / A572M - Gr. 50	0.23	1.35	0.04	0.05	0.15-0.40	...

Carbon steel plates for pressure vessels and boilers

For the manufacture of pressure vessels, boilers, etc., stricter requirements are placed on chemical composition and toughness.

ASTM Standard & Grade	C	Mn	P	S	Si	other
A516 / A516M - Gr. 70	0.27	0.85-1.20	0.025	0.025	0.15-0.40	CE ≤ 0.43
A285 / A285M - Gr. C	0.28	0.90	0.035	0.035	...	...

High-strength low-alloy structural steel plate (HSLA)

By adding trace amounts of alloying elements to carbon steel, higher strength and/or better weather resistance can be achieved.

ASTM Standard & Grade	C	Mn	P	S	Si	Alloy elements
A572 / A572M - Gr. 65	0.26	1.65	0.04	0.05	0.15-0.40	Nb, V
A588 / A588M - Gr. A	0.19	0.80-1.25	0.04	0.05	0.15-0.40	Cr: 0.30-0.50, Cu: 0.25-0.40, V: 0.02-0.10

Wear-resistant carbon steel plate

Used in high-wear environments, such as mining trucks, hoppers, and crushers.

ASTM Standard & Grade	C	Mn	P	S	Si	B (Min)
A514 / A514M	0.12-0.21	0.70-1.00	0.035	0.035	0.15-0.35	0.0005-0.005
AR400	0.30	1.20	0.025	0.010	0.80	...

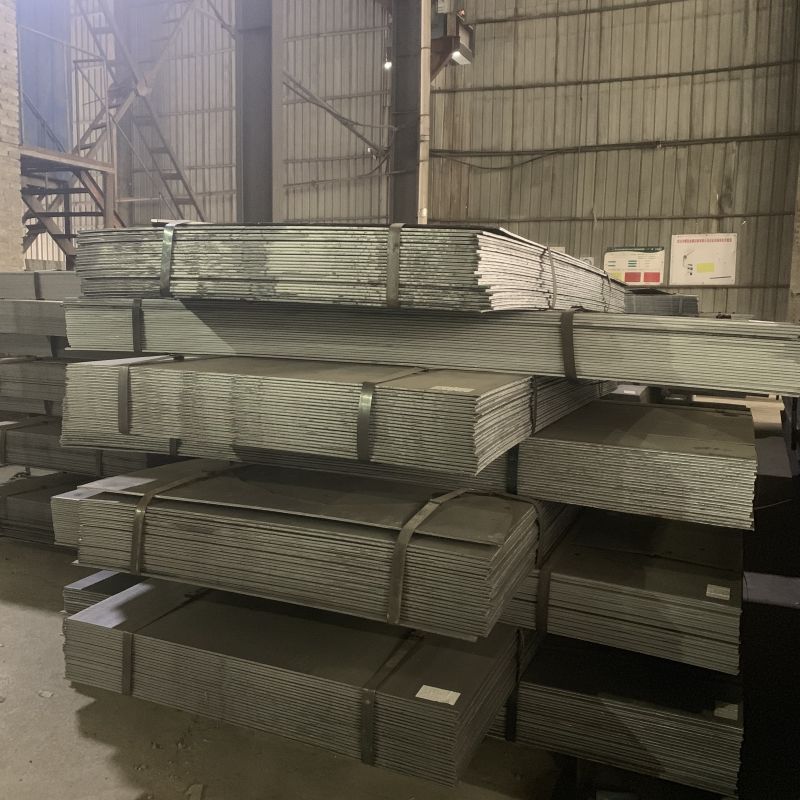

product display

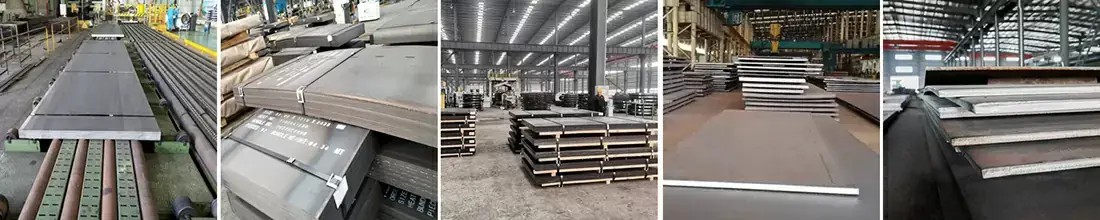

Factory area video

Product Application

Application Category	(ASTM/SAE)	(EN)	(JIS)	(GB)
General structural steel	A36	S235JR	SS400	Q235B
High-strength structural steel	A572 Gr.50	S355JR/J2	SM490A/B	Q355B
Pressure vessel steel	A516 Gr.60/70	P265GH	SPV235/SPV490	Q245R/Q345R
High-quality medium carbon steel	1045	C45 (1.0503)	S45C	45
Cold-rolled base material / High-quality low-carbon steel	1008, 1010	DC01 (EN10130)	SPCC (JIS G3141)	SPCC, DC01

Mainly used for welding in the fields of construction, bridges, machinery manufacturing (such as cranes, mining equipment, ship parts), and automotive structural parts.

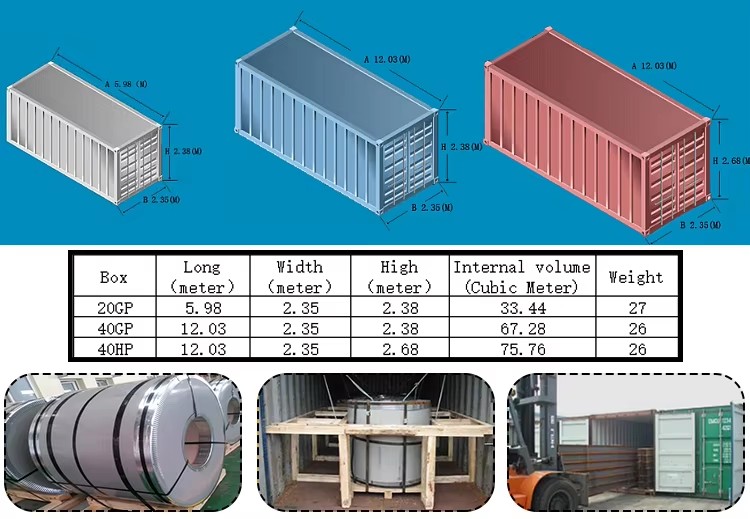

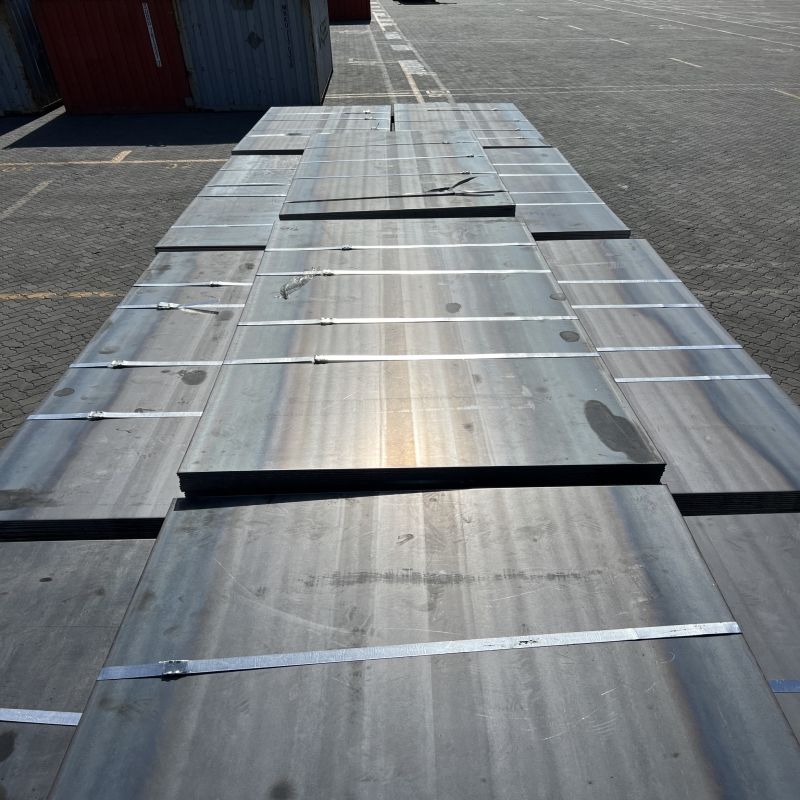

Packaging and shipping

Shandong Zhonglian Yongsheng Special Steel Co., Ltd. is a steel production enterprise that has been engaged in steel production, processing and sales for many years. Its main products include stainless steel series, carbon steel, galvanized steel and other profile products. It can also provide other metal products according to customer needs, with an annual export volume of about 1 million tons. It has five finishing production lines, three hot-dip galvanizing production lines, and two color coating production lines. It adopts advanced automatic width control system (AWC), automatic thickness control system (AGC), bending roll system, work roll guide roll system and other effective measures to ensure product quality. Its products are exported to more than 30 countries and regions including the United States, Canada, Spain, Russia, Iran, Saudi Arabia, Morocco, India, Pakistan, Malaysia, Singapore, Australia, New Zealand, etc. "Punctuality, integrity, and humanized service" have always been the development principles that the company and all employees have always adhered to.
