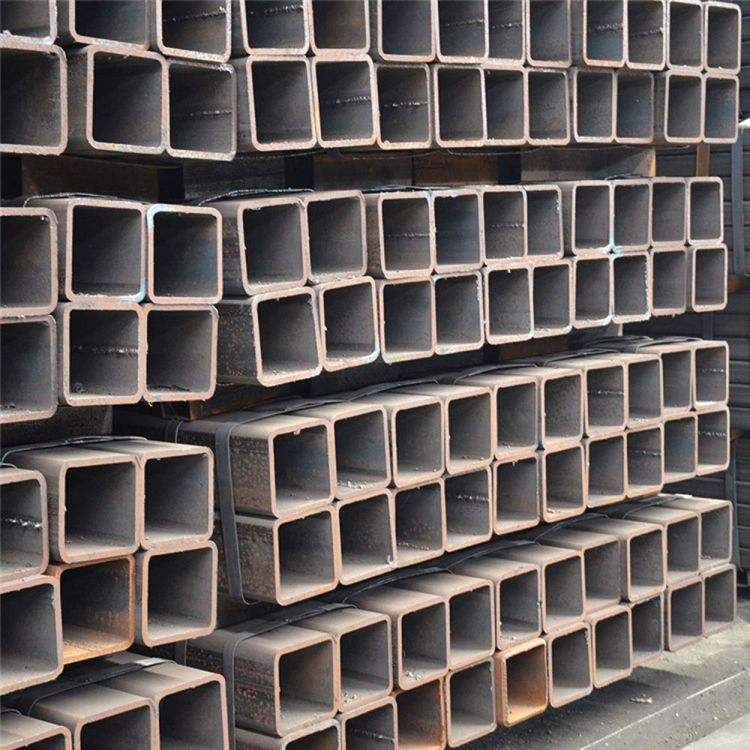

Carbon Steel square Pipe Rectangular Erw Welded Structural Steel Tube

Chemical composition: Carbon (C) content ≤0.26%, Manganese (Mn) content 0.85–1.35%, Phosphorus (P) and Sulfur (S) content ≤0.04% and 0.05% respectively.

Mechanical properties: Yield strength ≥250 MPa, tensile strength 400–550 MPa, elongation ≥20%.

Product Description

Square Tube/Rectangular Steel Pipes
Material	Q235, Q345, S275JR, S355JR, ASTM A500, A106, 20#, 45#, 16Mn, 42CrMo
Outer Size (mm)	20x20 to 500x500 (square), 20x40 to 400x600 (rectangular)
Wall Thickness (mm)	1.0 – 25.0
Length	6m / 12m / Custom cut
Surface Treatment	Black, Galvanized, Oiled, Painted
Production Method	ERW / Seamless / Hot Rolled
Standards	ASTM A500/A513/A106, EN 10210, EN 10219, GB/T 6728

Square tube size(mm)		Rectangular tube size(mm)
16x16x0.4~1.5	200x200x6.0~12.0	10x20x0.6~1.5	80x100x2.0~8.0	600x200x10~28.0
18x18x0.4~1.5	220x220x6.0~140	14x21x0.6~1.5	120x60x2.5~10.0	600x400x10~28.0
20x20x0.4~1.5	250x250x6.0~14.0	15x30x1.5~1.5	120x80x2.5~10.0	600x500x10~28.0
25x25x0.6~2.0	280x280x6.0~14.0	15x38x0.6~1.5	150x100x2.5~12.0	800x400x10~28.0
30x30x0.6~4.0	300x300x8.0~14.0	20x30x0.6~2.0	180x150x2.5~12.0	800x600x10~28.0
34x34x1.0~2.0	320x320x8.0~14.0	20x40x0.8~2.0	200x100x4~12.0	800x700x10~28.0
35x35x1.0~4.0	350x350x8.0~14.0	20x50x1.0~2.0	250x150x6~12.0	1000x400x10~28.0
38x38x1.0~4.0	380x380x8.0~14.0	22x35x09~2.0	250x150x6~12.0	1000x500x10~28.0
40x40x1.0~4.5	400x400x8.0~14.0	25x40x0.9~3.75	250x100x6~12.0	1000x600x10~28.0
44x44x1.0~4.5	420x420x10.0~14.0	25x65x1.0~2.0	250x200x6~12.0	1000x800x10~28
45x45x1.0~5.0	450x450x10.0~14.0	30x40x1.0~3.75	300x150x6~12.0
50x50x1.0~5.0	480x480x10.0~14.0	30x45x1.0~3.75	300x200x6~12.0
60x60x1.5~5.0	500x500x10.0~14.0	30x50x1.0~4.0	300x250x6~12.0
70x70x2.0~6.0	550x550x10.0~40.0	30x60x1.0~4.5	400x250x8~12.0
75x75x2.0~6.0	600x600x10.0~40.0	40x50x1.0~4.5	400x300x8~12.0
80x80x2.0~6.0	700x700x10.0~40.0	40x60x1.0~5.0	450x200x8~12.0
85x85x2.0~6.0	800x800x10.0~50.0	40x80x1.5~5.0	450x250x8~12.0
95x95x2.0~8.0	900x900x10.0~50.0	40x100x2.0~5.0	400x300x8~12.0
100x100x2.0~8.0	1000x1000x10.0~50	50x60x2.0~5.0	400x350x8~12.0
120x120x4.0~8.0		50x80x2.0~5.0	500x200x10~12.0
150x150x6.0~10.0		50x100x2.0~8.0	500x250x10~12.0
180x180x6.0~12.0		60x80x2.0~6.0	500x300x10~12.0

Application scenarios

Rectangular steel tubes have become an ideal choice in fields such as construction, machinery, and transportation due to their efficient structural performance, lightweight design, ease of installation, and wide applicability, balancing both economic and functional aspects.
