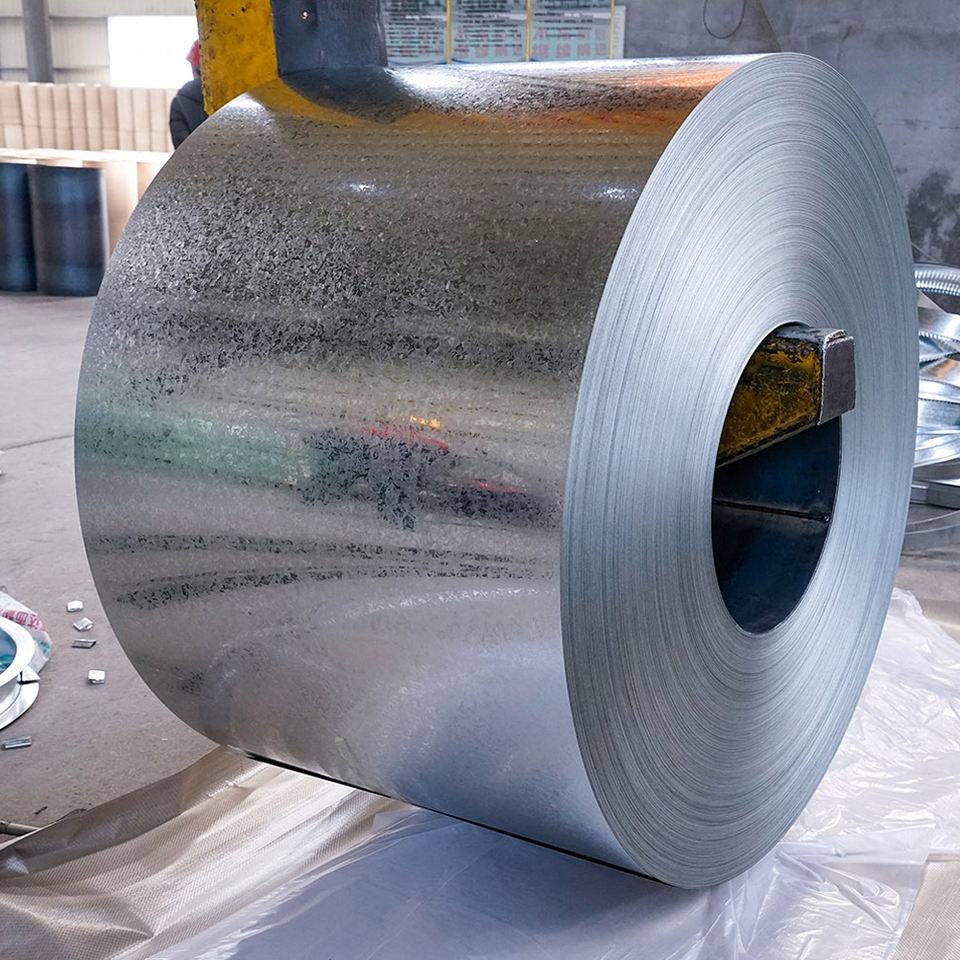

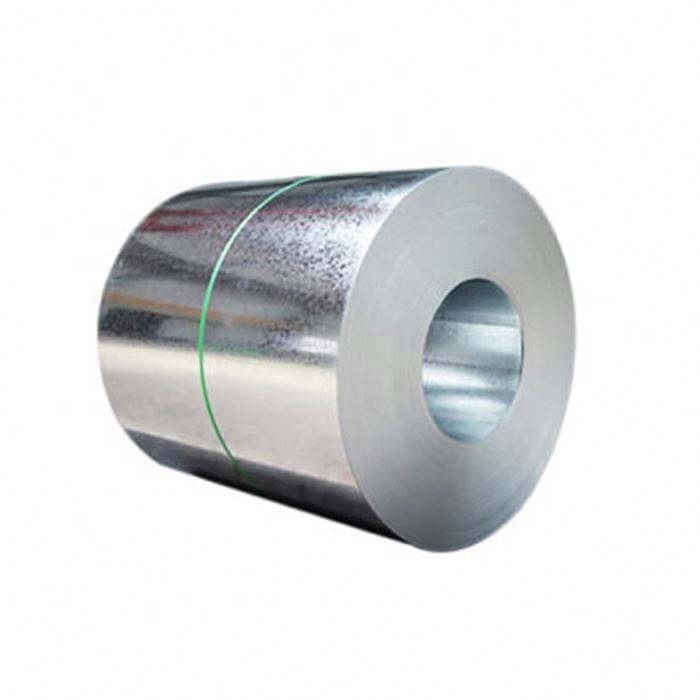

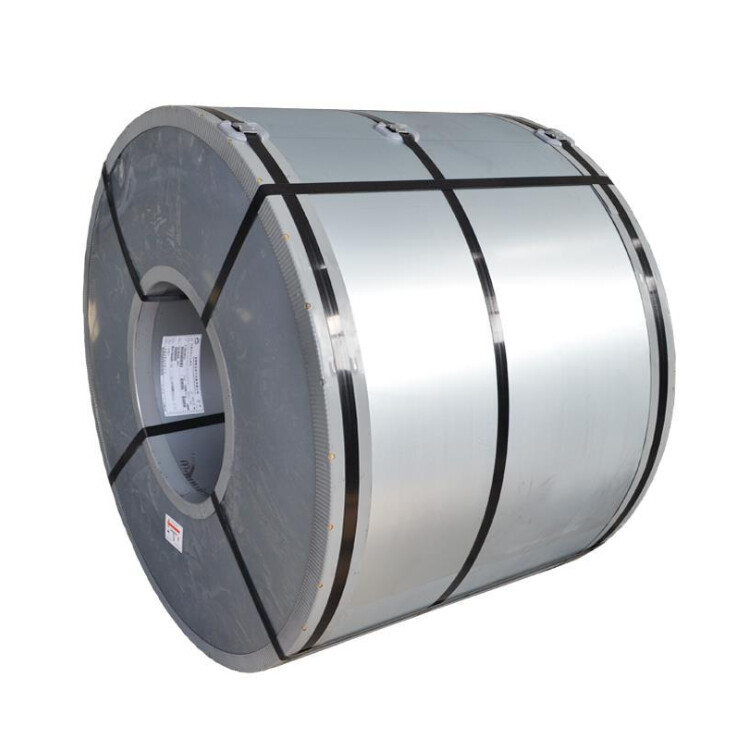

Dx51d Z100 Hot Dipped Galvanized Steel Coils

Hot-dip galvanized coils are made from steel, with a zinc coating applied to the surface via a hot-dip galvanizing process. This coating combines the strength of steel with the corrosion resistance of zinc.
Material Composition
The core materials of hot-dip galvanized coils are steel sheet (the base material) and molten zinc (the coating material). The base material is typically hot-rolled or cold-rolled steel, and the zinc is applied to the steel surface through a dipping process, forming a protective layer.

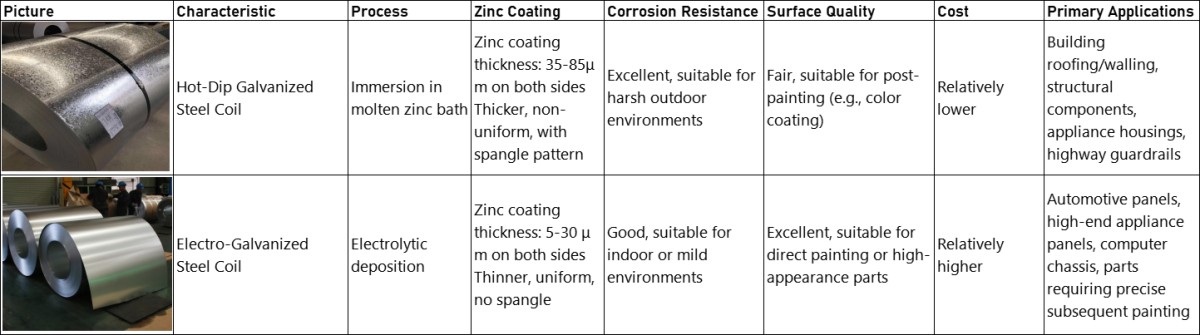

Coating Characteristics
The coating is applied using a hot-dip galvanizing process. The steel sheet is immersed in molten zinc, where a physical and chemical reaction occurs, forming a zinc-iron alloy layer. This structure provides the coating with strong adhesion, corrosion resistance (long service life), and excellent weldability.
Applications
It is widely used in construction, home appliances, automotive, and other fields, such as roofing materials and pipeline corrosion protection, combining the mechanical properties of steel sheet with the protective properties of a zinc coating.

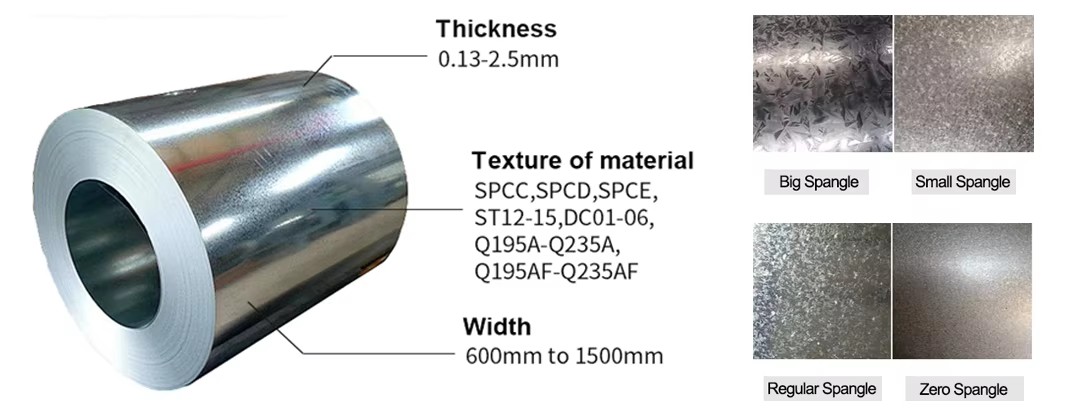

Product Name	Galvanized Steel Coil
Wall thickness	0.12MM~5MM
Length	600MM~1500MM
Standard	BS4449-2005,GB1449.2-2007,JIS G3112-2004, ASTM A615-A615M-04a, Korea StandarsKS D 3504, AustralasianStandard AS/NZS 4671
Grade	Q195 Q235 Q345 SGCC SGCH SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 DX51D DX52D DX53D DX54D DX55D DX56D DX57D S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD SS230 SS250 SS275
Zinc coating	40g/m2 to 275g/m2
Coil weight	3 tons to 8 tons
Packing	Bundle, or with all kinds of colors PVC or as your requirements
Surface Treatment	1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement

chemical composition

Standard Code	Grade (Steel Name/Designation)	Typical Thickness (mm)	Chemical Composition (wt%, max, unless specified)
Standard Code	Grade (Steel Name/Designation)	Typical Thickness (mm)	C	Si	Mn	P	S	Alt
EN 10346	DX51D (+Z)	0.3-3.0	0.12	-	0.6	0.05	0.045	-
	DX51D (+Z)	0.3-3.0	0.12	-	0.6	0.05	0.045	-
	DX52D (+Z)	0.3-3.0	0.1	-	0.6	0.045	0.045	-
	DX53D (+Z)	0.3-3.0	0.08	-	0.5	0.035	0.03	≥ 0.015
	DX54D (+Z)	0.3-3.0	0.02-0.08	≤ 0.03	0.3	0.025	0.025	0.015-0.10
	S220GD (+Z)	0.3-3.0	0.21	-	1.7	0.05	0.045	-
	S350GD (+Z)	0.3-3.0	0.25	-	1.7	0.05	0.045	-
Historical DIN	St01Z	0.3-3.0	0.12	-	0.6	0.05	0.045	-
	St02Z	0.3-3.0	0.1	-	0.6	0.045	0.045	-
	St03Z	0.3-3.0	0.08	-	0.5	0.035	0.03	≥ 0.015
	St04Z	0.3-3.0	0.02-0.08	≤ 0.03	0.3	0.025	0.025	0.015-0.10
JIS G 3302	SGCC	0.25-3.2	0.15	0.05	0.6	0.05	0.045	-
	SGC340	0.25-3.2	0.25	0.05	1.2	0.05	0.045	-
	SGC400	0.25-3.2	0.25	0.05	1.2	0.05	0.045	-
	SGC440	0.25-3.2	0.25	0.05	1.2	0.05	0.045	-
	SGCD1	0.25-3.2	0.08	0.05	0.5	0.035	0.03	≥ 0.01
	SGCD2	0.25-3.2	0.08	0.05	0.5	0.03	0.03	≥ 0.01
	SGCD3	0.25-3.2	0.008	≤ 0.03	0.3	0.025	0.025	0.015-0.10
ASTM A653	CS Type B	0.4-2.0	0.10-0.15	-	0.6	0.035	0.035	-
	FS Type B	0.4-2.0	0.08	-	0.5	0.03	0.03	-
	FS Type C	0.4-2.0	0.08	-	0.5	0.03	0.03	0.01-0.09

Mechanical properties

Usage	Grade	Yield Strength (MPA)	Tensile Strength (MPA)	Elongation rate %
Punching galvanized steel	DX51D+Z	~	270-500	>=20
	DX52D+Z	140-300	270-420	>=22
	DX53D+Z	140-260	270-380	>=26
	DX54D+Z	140-220	270-350	>=30
Structure galvanized steel	S220GD+Z	>=220	>=300	>=18
	S250GD+Z	>=250	>=330	>=17
	S280GD+Z	>=280	>=360	>=16
	S320GD+Z	>=320	>=390	>=15
	S350GD+Z	>=350	>=420	>=14
	S400GD+Z	>=400	>=470	~
	S500GD+Z	>=500	>=530	~
	S550GD+Z	>=550	>=560	~

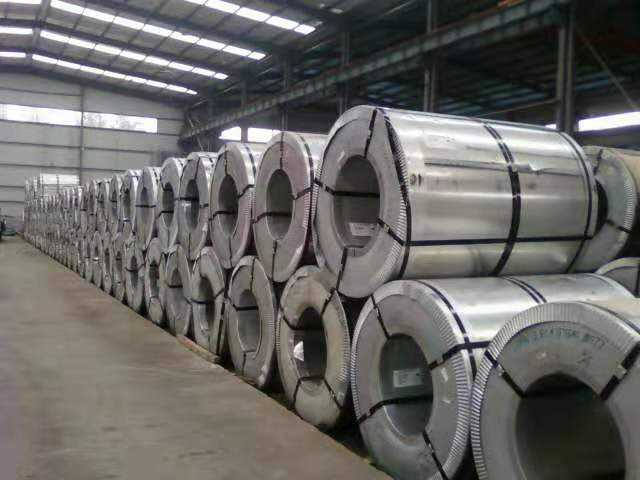

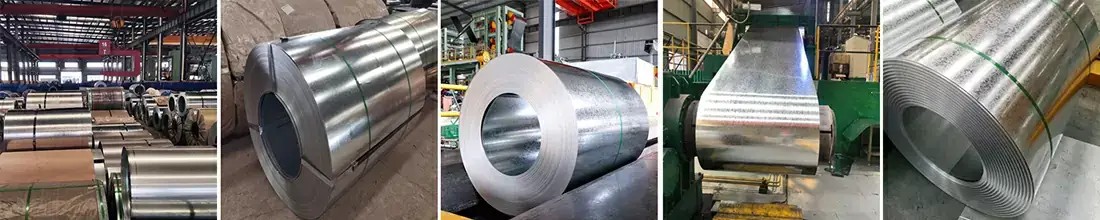

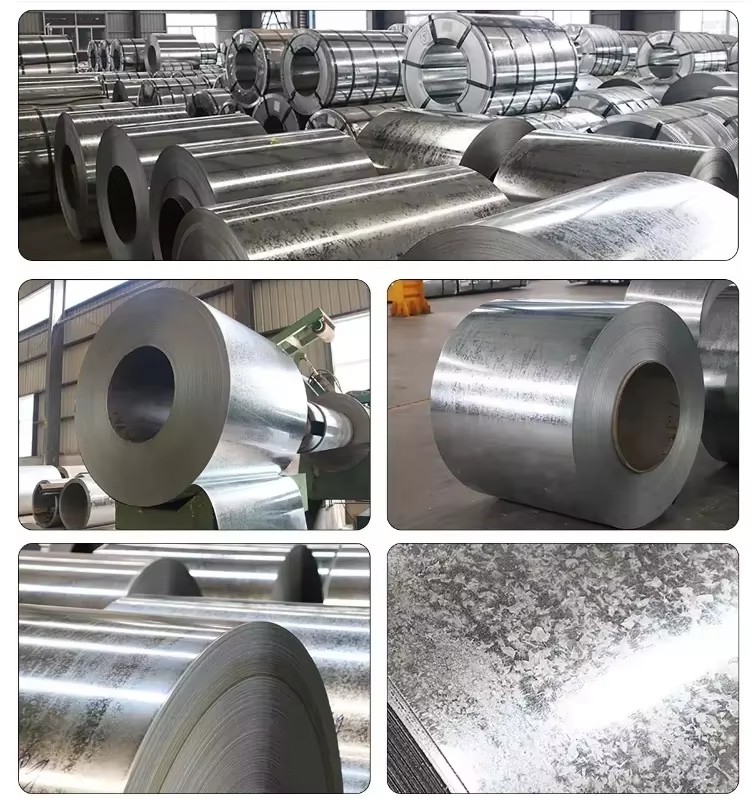

Product Showcase

Shandong Zhonglian Yongsheng Special Steel Co., Ltd. is a steel production enterprise that has been engaged in steel production, processing and sales for many years.

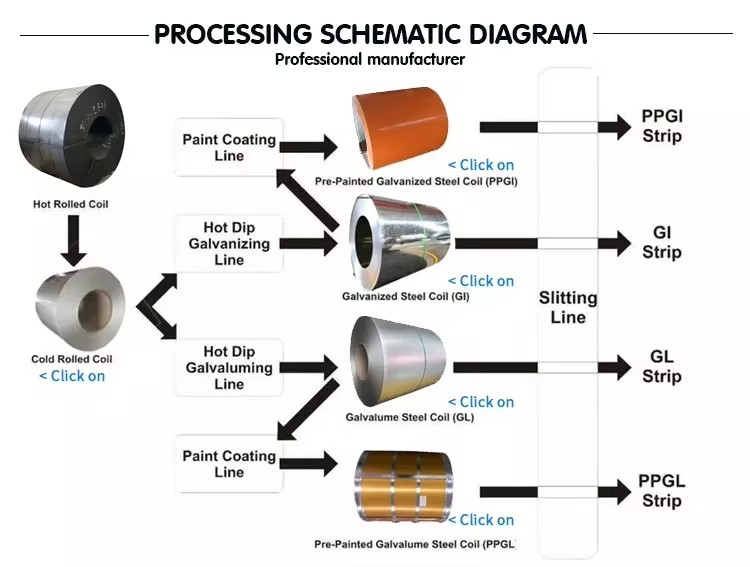

Its main products include stainless steel series, carbon steel, galvanized steel and other profile products. It can also provide other metal products according to customer needs, with an annual export volume of about 1 million tons. It has five finishing production lines, three hot-dip galvanizing production lines, and two color coating production lines. It adopts advanced automatic width control system (AWC), automatic thickness control system (AGC), bending roll system, work roll guide roll system and other effective measures to ensure product quality.

Its products are exported to more than 30 countries and regions including the United States, Canada, Spain, Russia, Iran, Saudi Arabia, Morocco, India, Pakistan, Malaysia, Singapore, Australia, New Zealand, etc. "Punctuality, integrity, and humanized service" have always been the development principles that the company and all employees have always adhered to.
