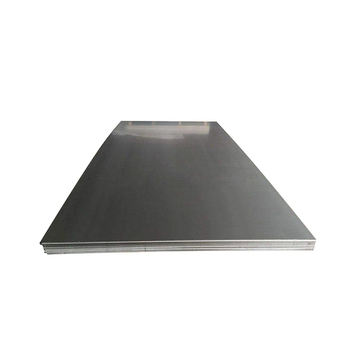

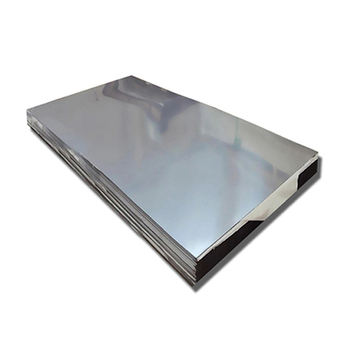

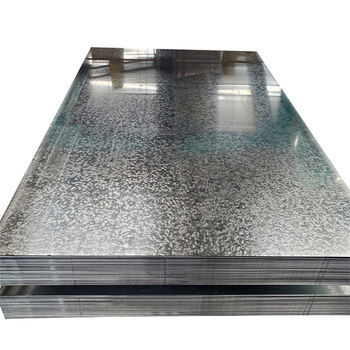

Dx51d Dx52d Dx53d Dx54d Customized Astm Hot Dipped Galvanized Steel Plate

Property Value
Yield Strength (ReH) 140–300 MPa (typically 180–260 MPa)
Tensile Strength (Rm) 270–500 MPa (typically 300–420 MPa)
Elongation (A80mm) ≥18–22% (typically 20–30%)
168

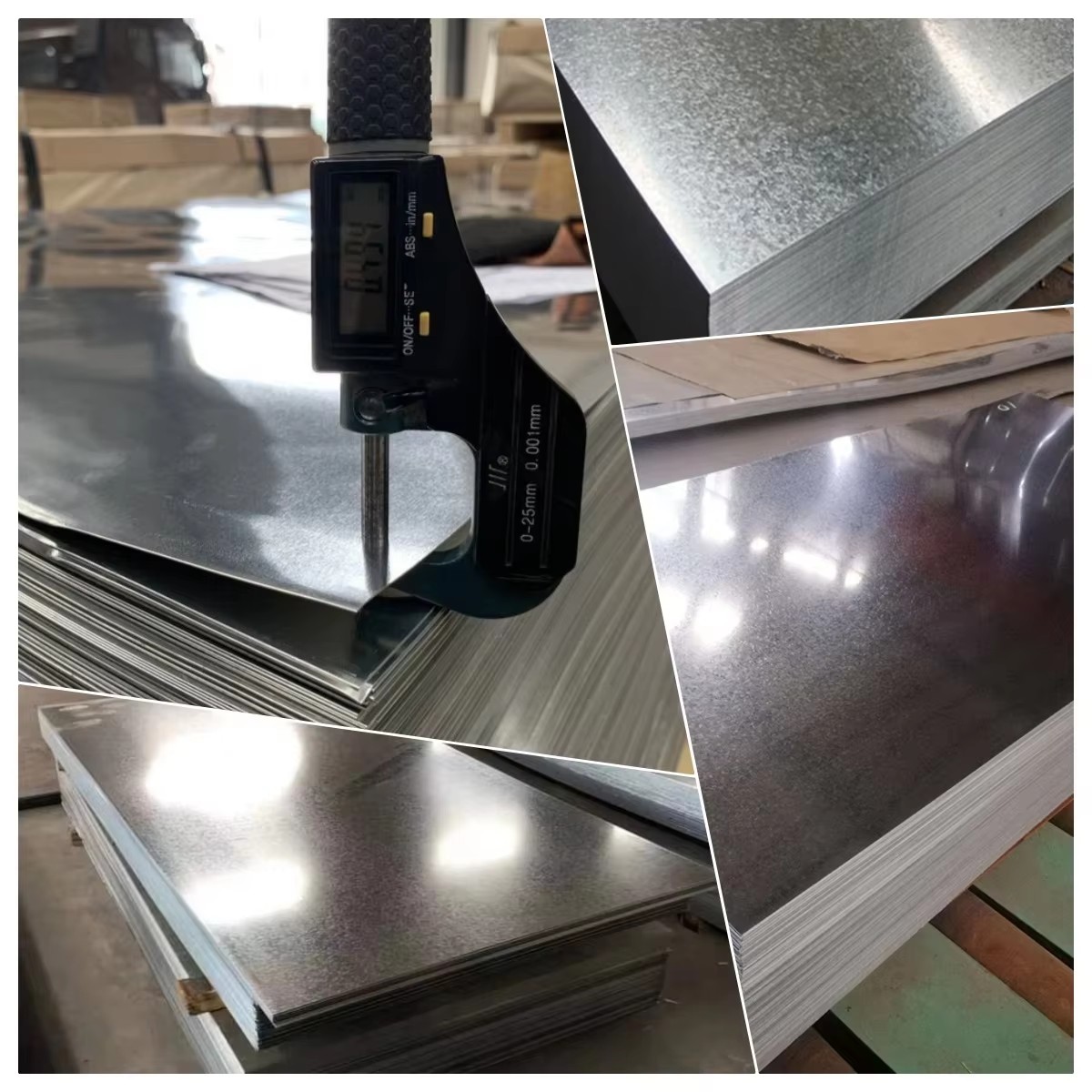

Dimensions and Tolerances:

Thickness: 0.12–6.0 mm (common: 0.45 mm, 0.95 mm, 1.2 mm, etc.)179.

Width: 600–1500 mm (common: 1000 mm, 1250 mm)12.

Length: Customizable, typically 1–12 m2.

Thickness Tolerance: Varies; e.g., ±0.02 mm to ±0.08 mm depending on thickness

Gavanized Steel Plate
Grade	SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51
Technique	Cold Rolled Hot Rolled
Zinc Coating	40-275g/m2 or Customized
Surface Treatment	Chromated/non-chromated, Oiled/non-oiled

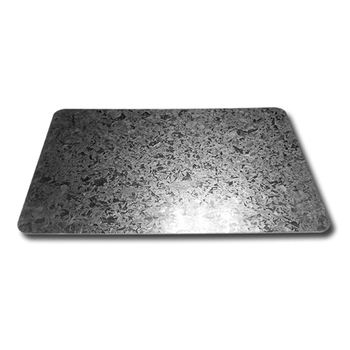

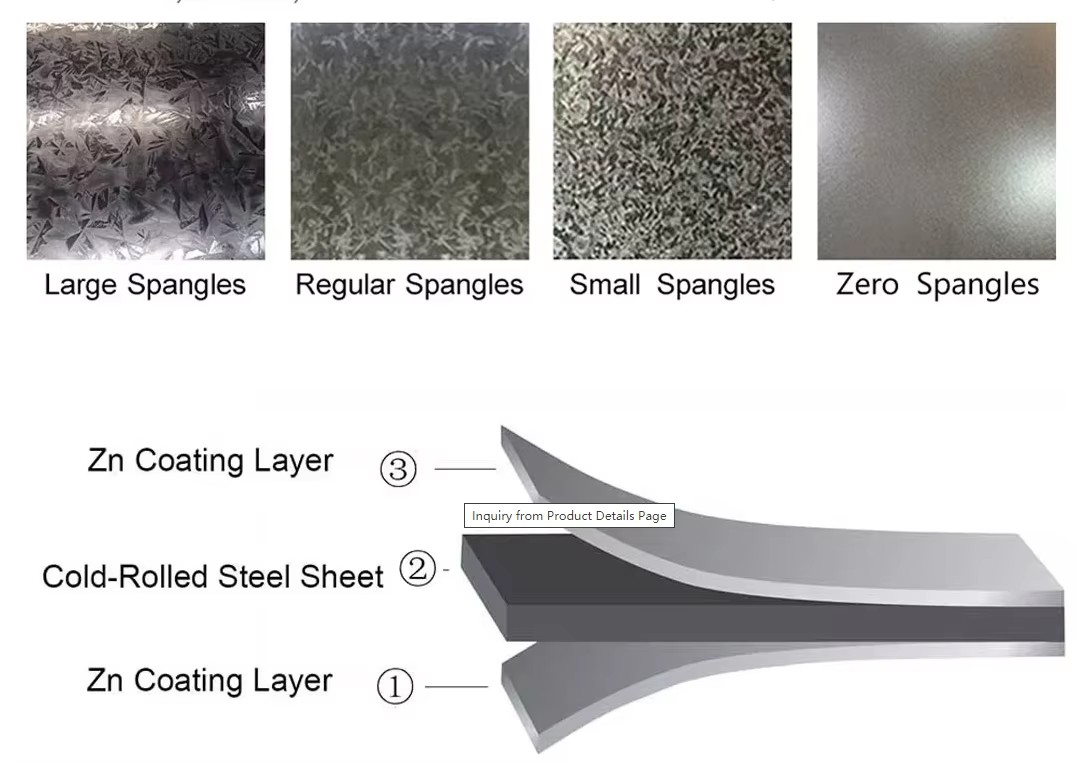

Spangle	Regular/Minimum/Zero/Big
Specification	- Length:1200-2500mm or Customized
	- Width:600-1500mm or Customized
	- Thickness:0.20-0.50mm or Customized
Mechanical property	- Tensile Strength:270~550MPa
	- Yield Strength:140~420MPa
	- Hardness:60-120HB
Package	Standard Seaworthy Package
Application	Used in construction, bridges, industrial equipment, and transportation facilities. Provides excellent corrosion resistance and durability.

chemical composition

Standard	Grade/Designation	C (max, %)	Si (max, %)	Mn (max, %)	P (max, %)	S (max, %)	Al (%, typical)
EN 10346	DX51D (+Z)	0.12	-	0.6	0.1	0.045	-
	DX52D (+Z)	0.1	-	0.5	0.1	0.045	-
	DX53D (+Z)	0.08	-	0.45	0.1	0.045	-
	DX54D (+Z)	0.08	-	0.45	0.1	0.045	-
	HX260LAD (+Z)	0.11	0.5	0.8	0.1	0.045	0.015 - 0.10
	HX300LAD (+Z)	0.11	0.5	1	0.1	0.045	0.015 - 0.10
JIS G 3302	SGCC	0.12	0.05	0.5	0.035	0.035	-
	SGC340	0.2	0.3	1	0.1	0.035	-
	SGC400	0.25	0.35	1.2	0.1	0.035	-
	SGC440	0.25	0.35	1.2	0.1	0.035	-
	SGCD1/2/3 (Drawing Grades)	0.08 / 0.06 / 0.02	0.03	0.40 / 0.30 / 0.25	0.03	0.025	0.02 - 0.07
ASTM A653	CS Type A/B (Commercial Quality)	0.10 - 0.15	0.03	0.6	0.035	0.035	0.02 - 0.10
	DS Type A/B (Drawing Quality)	0.08	0.03	0.45	0.025	0.025	0.02 - 0.10
	DDS Type A/B (Deep Drawing Quality)	0.06	0.03	0.35	0.02	0.025	0.02 - 0.10
	SS Grade 33/40/50 (Structural)	0.2	0.5	1	0.1	0.045	0.02 - 0.10

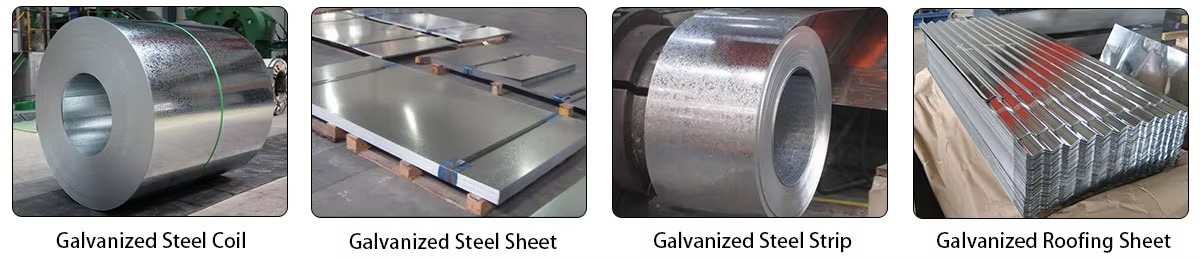

Product Details

The annual output of 300,000 tons of galvanized steel production line is the advanced American GBNB and German Siemens electrical control system. It can produce zero spangles, small spangles, ordinary spangles, etc. The thickness is from 0.125mm to 4.5mm, the width is from 500mm to 1250mm, the zinc coating is from 40-275 g/m², the surface is passivated and oil can be coated.

In addition, the company has also introduced a slitting machine, which can meet the different requirements of customers for the width. And two roll forming machines can produce wave roof panels and trapezoidal corrugated panels.

Packaging and shipping

Shandong Zhonglian Yongsheng Special Steel Co., Ltd. is a steel production enterprise that has been engaged in steel production, processing and sales for many years. Its main products include stainless steel series, carbon steel, galvanized steel and other profile products. It can also provide other metal products according to customer needs, with an annual export volume of about 1 million tons. It has five finishing production lines, three hot-dip galvanizing production lines, and two color coating production lines. It adopts advanced automatic width control system (AWC), automatic thickness control system (AGC), bending roll system, work roll guide roll system and other effective measures to ensure product quality. Its products are exported to more than 30 countries and regions including the United States, Canada, Spain, Russia, Iran, Saudi Arabia, Morocco, India, Pakistan, Malaysia, Singapore, Australia, New Zealand, etc. "Punctuality, integrity, and humanized service" have always been the development principles that the company and all employees have always adhered to.
