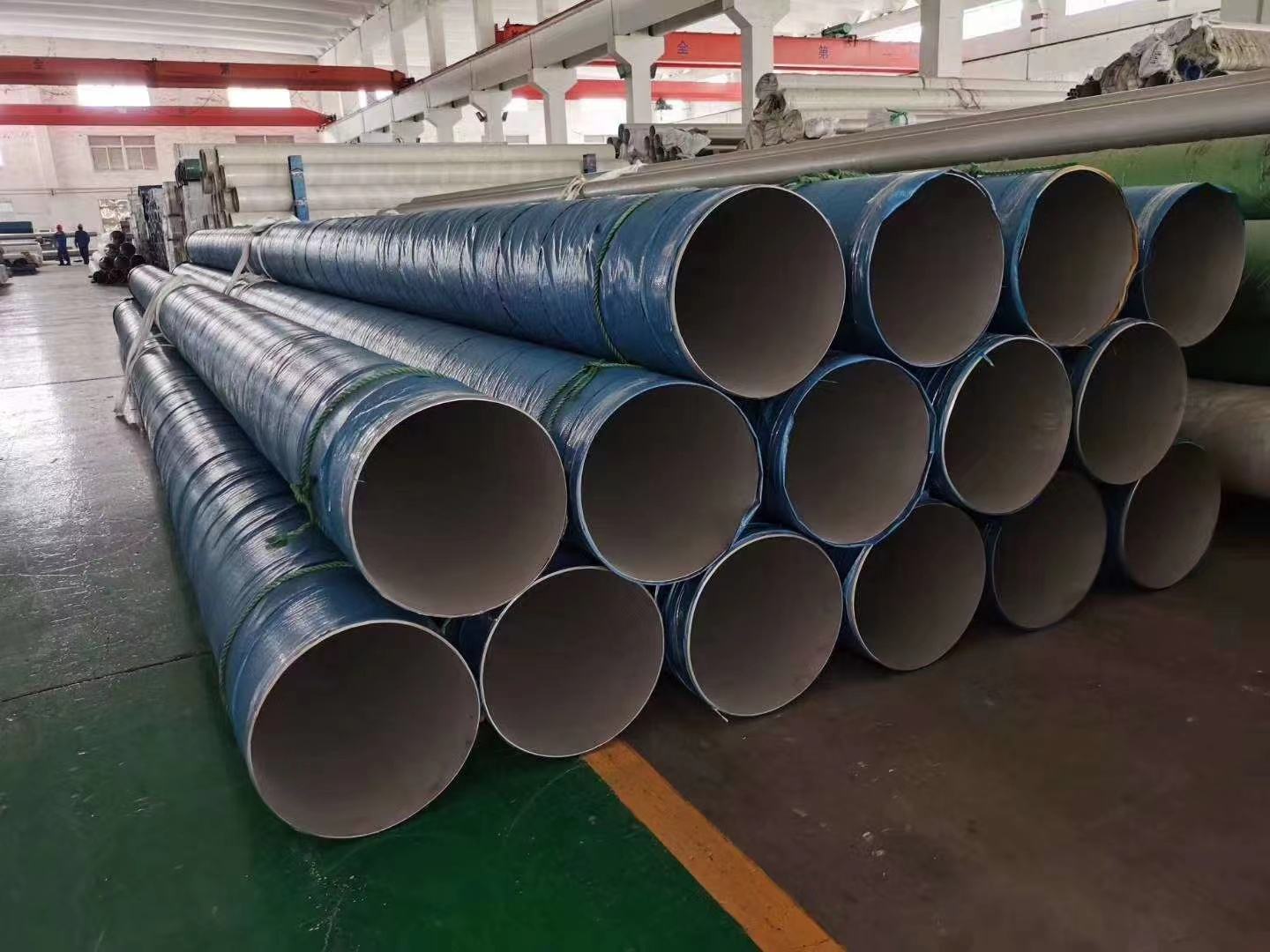

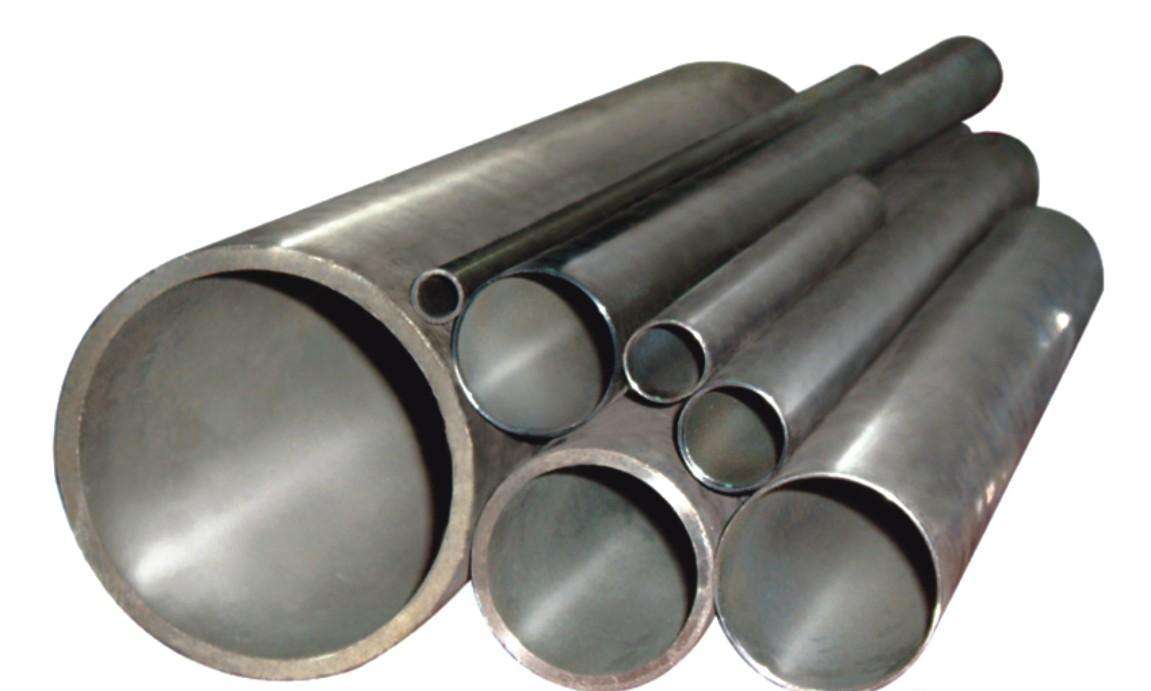

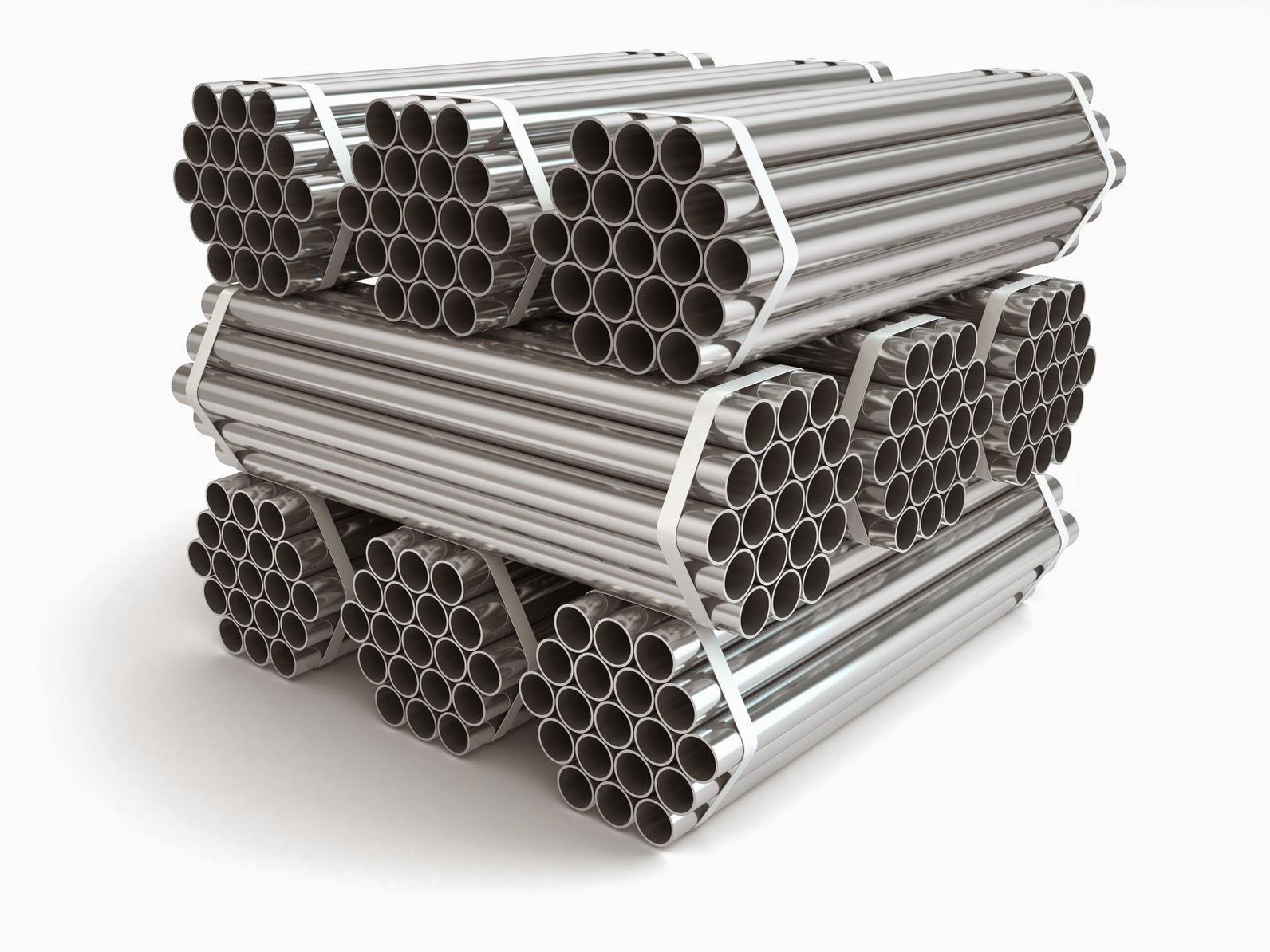

201 202 Stainless Steel Pipe
Standard: ASTM, AISI, DIN, EN, GB, JIS
Dimensions: 3mm-800mm
Grade: 200 series ,300 series ,400 series
Place of Origin: Shandong, China (Mainland)
Contact us

284548a102991c11174a7ce093a2f78b

Product NameStainless steel pipe
StandardASTM AISI DIN, EN, GB, JIS
Steel Grade200 Series: 201,202
300 Series: 301,304,304L,316,316L,316Ti,317L,321,309s,310s
400 Series: 409L,410,410s,420j1,420j2,430,444,441,436
Duplex Steel: 904L,2205,2507,2101,2520,2304
Outer Diameter6-2500mm(as required)
Thickness0.3mm-150mm (as required)
Length2000mm/2500mm/3000mm/6000mm/12000mm(as required)
TechniqueSeamless/Welded
SurfaceNo.1 2B BA 6K 8K Mirror No.4 HL
Tolerance±1%
Price TermsFOB,CFR,CIF

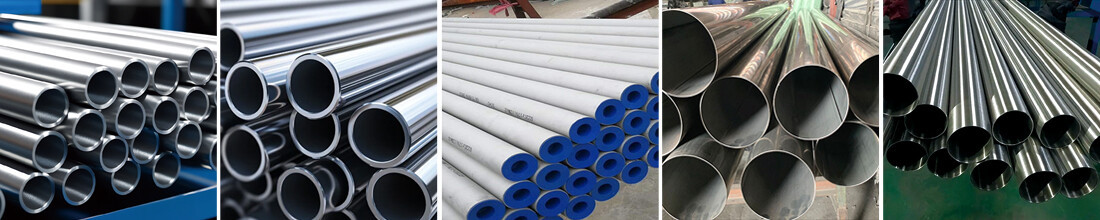

5b078216355d0d27a916223fbcddb8f2

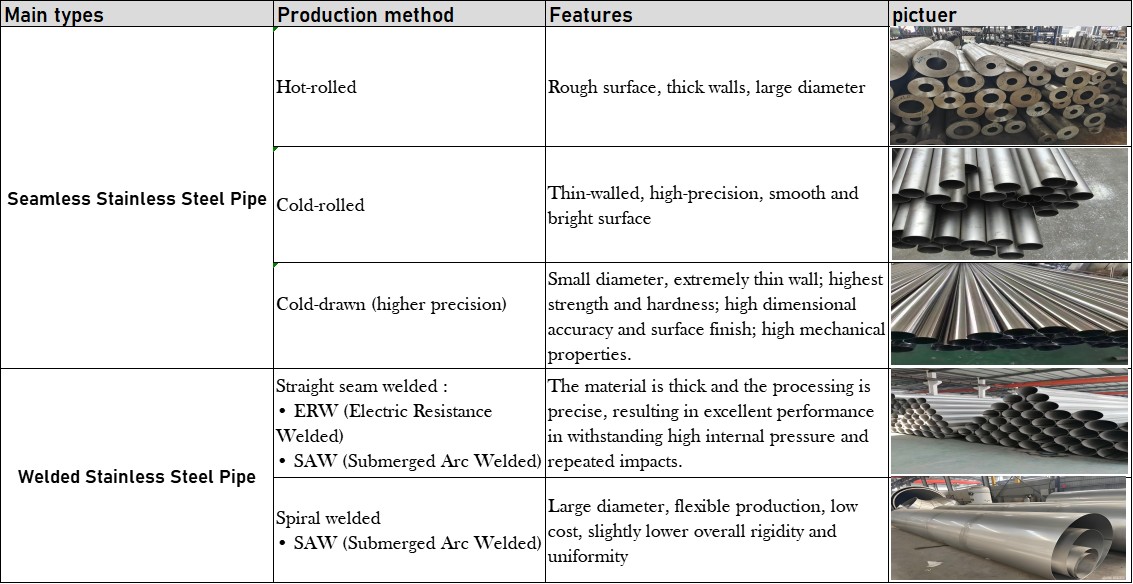

886463ba69fb350fecdaae490cb1baa6


CategorySeamless Stainless Steel PipeWelded Stainless Steel Pipe
DefinitionManufactured by piercing a solid round billet, followed by processes such as hot rolling, cold rolling, or cold drawing. The pipe has no weld seam throughout.Formed by rolling and shaping stainless steel plates or strips into a tube, and then joining the edges through welding.
Process Subdivisions1. Hot-rolled seamless pipe2. Cold-rolled / Cold-drawn seamless pipe (higher precision)1. By welding process:
- Longitudinally welded pipe:
• ERW (High-Frequency Resistance Welded Pipe)
• SAW (Submerged Arc Welded Pipe)
- Spiral welded pipe2. By weld seam treatment:
- As-welded pipe
- Weld seam ground/polished pipe
- Cold-drawn/cold-rolled welded pipe (performance close to seamless pipe)
Common ApplicationsHigh-temperature & high-pressure fluid conveyance (e.g., boiler tubes, heat exchanger tubes), hydraulic/pneumatic systems, critical mechanical structural components.Low-pressure fluid conveyance (water, gas), decorative uses, guardrails, furniture, general mechanical structural components


2b3fd925b898235f8c54f71d72d95a1a

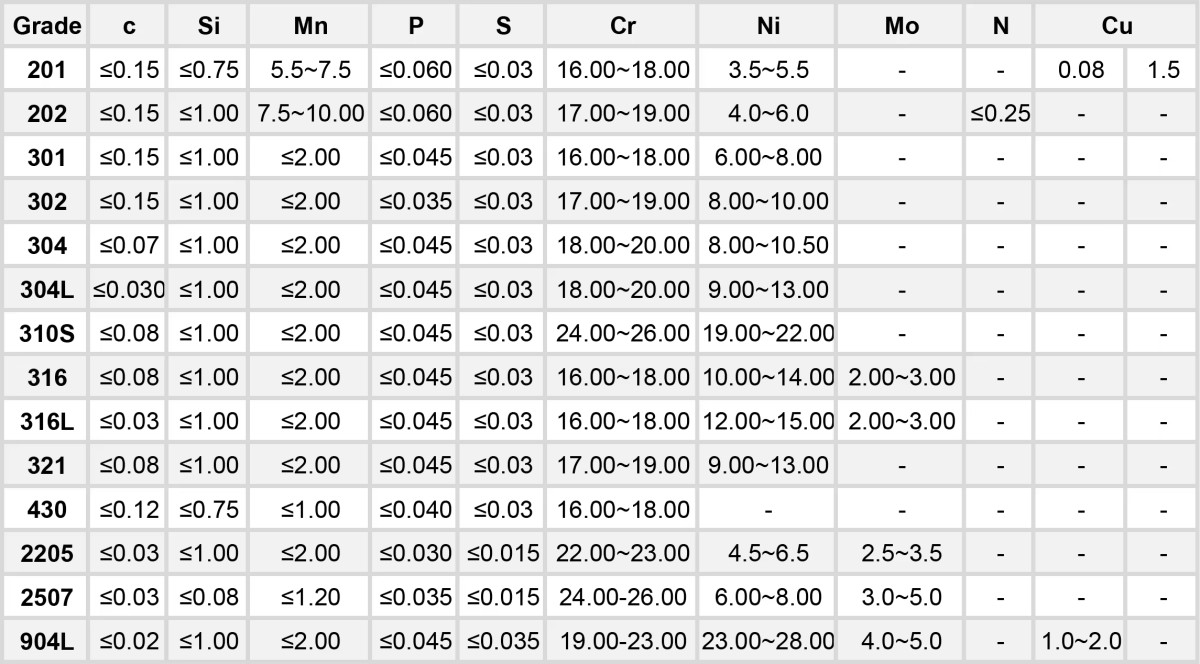

Chemical composition standards

c96adfd25a6ecdec6e9703445dca2dd3


Stainless Steel Pipe Classification by Application

Application CategoryKey RequirementsPreferred Process / Pipe TypeCommon Material GradesTypical Applications
Fluid Conveyance PipesHigh pressure-bearing capacity.Seamless pipes or high-quality welded pipes.304, 316, etc. (selected based on the medium).Transporting liquids and gases in industrial and municipal systems.
Structural PipesStrength and aesthetics.Mostly square or rectangular welded pipes.Typically 304.Building frameworks, guardrails, handrails, furniture frames.
Mechanical & Structural TubesHigh dimensional precision and good surface finish.Cold-drawn (rolled) seamless tubes or precision welded tubes.304, 304L, 316, 316L, etc.Shafts, cylinders, bearings, and other precision mechanical components.
Heat Exchanger / Boiler TubesResistance to high temperature, high pressure, and corrosion.Usually small-diameter, thin-walled seamless tubes.304, 316, 321, etc.Heat exchangers, condensers, superheater tubes, boiler tubes.
Sanitary / Hygienic TubesHighly polished inner surface (e.g., Electropolished), sterile, easy to clean.Bright Annealed (BA) tubing or polished pipes (often seamless or welded with treated seam).Primarily 316L.Food & beverage processing, pharmaceutical, biotechnology piping systems.
Decorative PipesEmphasis on appearance.Mostly welded thin-walled pipes.201, 304.Interior design elements, decorative trims, architectural features, signage. Surface finishes: PVD coating (titanium gold, black), brushed, etc.

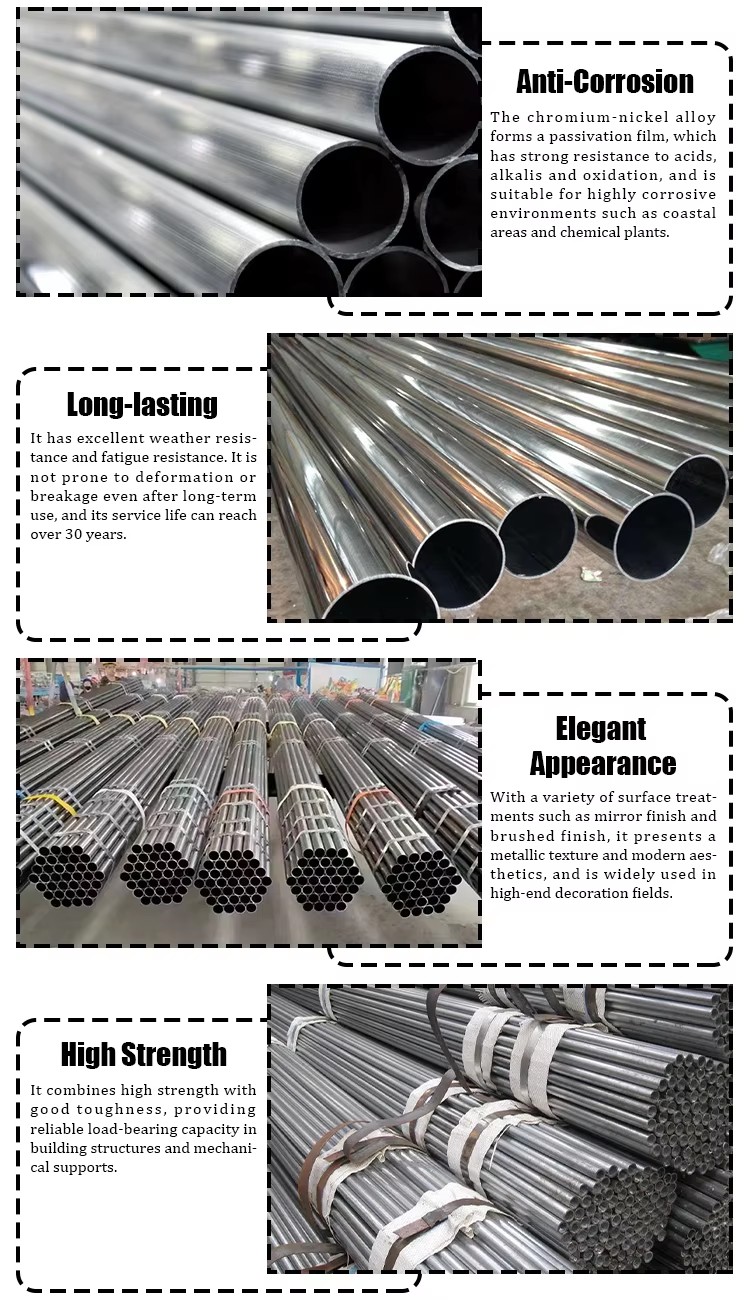

Product Details

ec69bf4db6f21940b98a0283429488bf

dc8cfcd5e06bf7c437c28840e248f0b3

3247f7a6cdf2cb2eecdb3d2fa21b5002

3d842d0d338519360ef20036d64699a2
