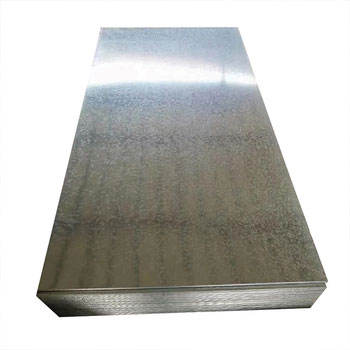

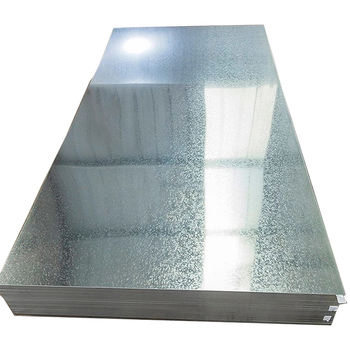

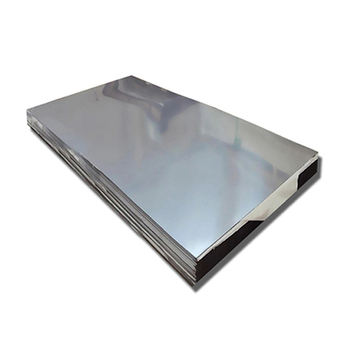

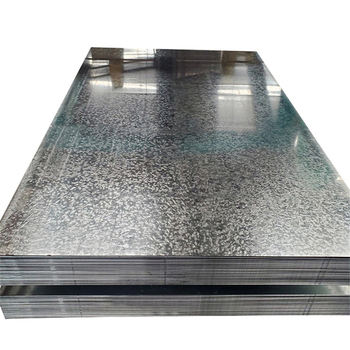

Galvanized Steel Plate

Hot-dip galvanized steel sheet (SGCC) ‌
It is produced by continuous galvanizing process with cold-rolled steel sheet (SPCC) as the substrate. The coating is thicker (usually ≥5μm) and has the best corrosion resistance. It is widely used in construction, automobile manufacturing and other fields. ‌
‌ Electrogalvanized steel sheet ‌
Galvanized by electroplating, the coating is thinner (usually ≤5μm), the corrosion resistance is poor, but the processing performance is good, suitable for scenes requiring surface treatment. ‌
‌ Alloyed galvanized steel sheet ‌
After hot-dip galvanizing, high-temperature treatment is performed to form a zinc-iron alloy layer (about 500℃), which improves the adhesion and weldability of the coating and is often used in complex processing scenes. ‌
‌ Composite galvanized steel sheet ‌
The substrate contains metals such as aluminum and lead, and has better anti-rust performance and paintability, suitable for scenes with high requirements.

Gavanized Steel Plate
Grade	SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51
Technique	Cold Rolled Hot Rolled
Zinc Coating	40-275g/m2 or Customized
Surface Treatment	Chromated/non-chromated, Oiled/non-oiled
Spangle	Regular/Minimum/Zero/Big
Specification	- Length:1200-2500mm or Customized
	- Width:600-1500mm or Customized
	- Thickness:0.20-0.50mm or Customized
Mechanical property	- Tensile Strength:270~550MPa
	- Yield Strength:140~420MPa
	- Hardness:60-120HB
Package	Standard Seaworthy Package
Application	Used in construction, bridges, industrial equipment, and transportation facilities. Provides excellent corrosion resistance and durability.

chemical composition

Standard	Grade/Designation	C (max, %)	Si (max, %)	Mn (max, %)	P (max, %)	S (max, %)	Al (%, typical)
EN 10346	DX51D (+Z)	0.12	-	0.6	0.1	0.045	-
	DX52D (+Z)	0.1	-	0.5	0.1	0.045	-
	DX53D (+Z)	0.08	-	0.45	0.1	0.045	-
	DX54D (+Z)	0.08	-	0.45	0.1	0.045	-
	HX260LAD (+Z)	0.11	0.5	0.8	0.1	0.045	0.015 - 0.10
	HX300LAD (+Z)	0.11	0.5	1	0.1	0.045	0.015 - 0.10
JIS G 3302	SGCC	0.12	0.05	0.5	0.035	0.035	-
	SGC340	0.2	0.3	1	0.1	0.035	-
	SGC400	0.25	0.35	1.2	0.1	0.035	-
	SGC440	0.25	0.35	1.2	0.1	0.035	-
	SGCD1/2/3 (Drawing Grades)	0.08 / 0.06 / 0.02	0.03	0.40 / 0.30 / 0.25	0.03	0.025	0.02 - 0.07
ASTM A653	CS Type A/B (Commercial Quality)	0.10 - 0.15	0.03	0.6	0.035	0.035	0.02 - 0.10
	DS Type A/B (Drawing Quality)	0.08	0.03	0.45	0.025	0.025	0.02 - 0.10
	DDS Type A/B (Deep Drawing Quality)	0.06	0.03	0.35	0.02	0.025	0.02 - 0.10
	SS Grade 33/40/50 (Structural)	0.2	0.5	1	0.1	0.045	0.02 - 0.10

Product Details

The annual output of 300,000 tons of galvanized steel production line is the advanced American GBNB and German Siemens electrical control system. It can produce zero spangles, small spangles, ordinary spangles, etc. The thickness is from 0.125mm to 4.5mm, the width is from 500mm to 1250mm, the zinc coating is from 40-275 g/m², the surface is passivated and oil can be coated.

In addition, the company has also introduced a slitting machine, which can meet the different requirements of customers for the width. And two roll forming machines can produce wave roof panels and trapezoidal corrugated panels.

Packaging and shipping

Shandong Zhonglian Yongsheng Special Steel Co., Ltd. is a steel production enterprise that has been engaged in steel production, processing and sales for many years. Its main products include stainless steel series, carbon steel, galvanized steel and other profile products. It can also provide other metal products according to customer needs, with an annual export volume of about 1 million tons. It has five finishing production lines, three hot-dip galvanizing production lines, and two color coating production lines. It adopts advanced automatic width control system (AWC), automatic thickness control system (AGC), bending roll system, work roll guide roll system and other effective measures to ensure product quality. Its products are exported to more than 30 countries and regions including the United States, Canada, Spain, Russia, Iran, Saudi Arabia, Morocco, India, Pakistan, Malaysia, Singapore, Australia, New Zealand, etc. "Punctuality, integrity, and humanized service" have always been the development principles that the company and all employees have always adhered to.
